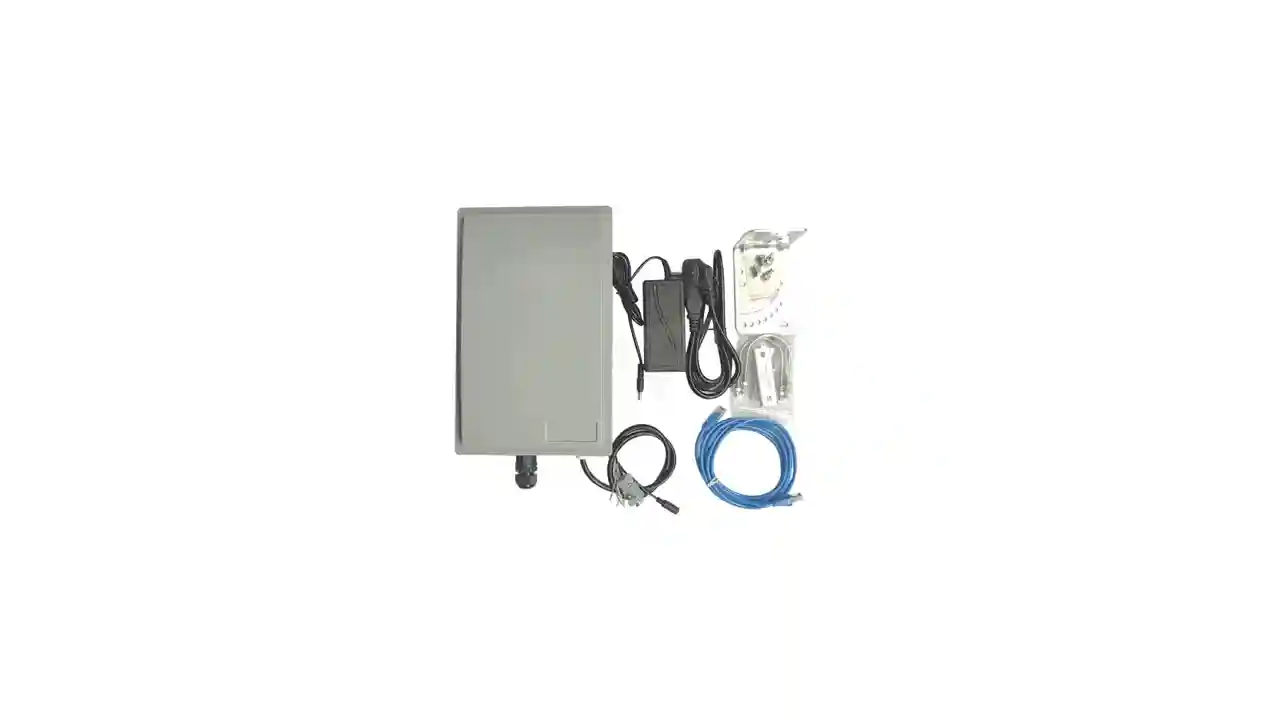

Ci-RI265 Long Range Integrated Active RFID Reader

Ci-RI265 is integrated active reader with directional reading, reading range can reach 200m in open area, IP67 rating suitable for outdoor application, it is mainly used for vehicle access control, children tracking in park, personnel management etc.

Attachment: Ri265.pdf

FEATURES
ISM 2400-2480Mhz Working Frequency, Private Protocol
Reading Radius 3-200m in Open Area, Range Adjustable by Software
Build-in 15dBi Antenna, All in One RFID Reader
Support RS-232, Ethernet Communication Ports
Support GPIO
C#/C++ API Provided
RF PARAMETER
Working Frequency ISM 2.4-2.48GHz
Rf Output Power Max +15dBm,step -2dB, software adjustable
Receive Sensitivity -93dBm
Antenna Build-in 15dBi vertical polarized antenna
Antenna Parameter Half power angle: Hor:45-Ver:45; Antenna front to back ratio ≥18dB
COMMUNICATION PARAMETER
Data Ports RS232, Ethernet
Data Ports (Optional) RS485, Wiegand 26/34(customizable)
Gpio (Optional) 2 channel trigger(optical isolated) input (5V,<20mA); 2 channel relay output (30V,<1000mA)
Firmware Upgrade Support RS 232 connection updating with specified software
Application Software API in C++/C#
TAG PARAMETER
Tag Protocol Private
Reading Distance 0-200m (tag type matters)
Reading Speed 300pcs/s
MECHANICAL & ELECTRICAL PERFORMANCE
Dimensions 320*200*75mm
Weight 1800g
Power Consumption Standby 200mw, working 400mW
Working Temperature -30°C~+70°C
Storage Temperature -40°C~+80°C
Humidity 5%~95%( non-condensing)
Ip Rating IP67
Installation Wall or pole mounting
